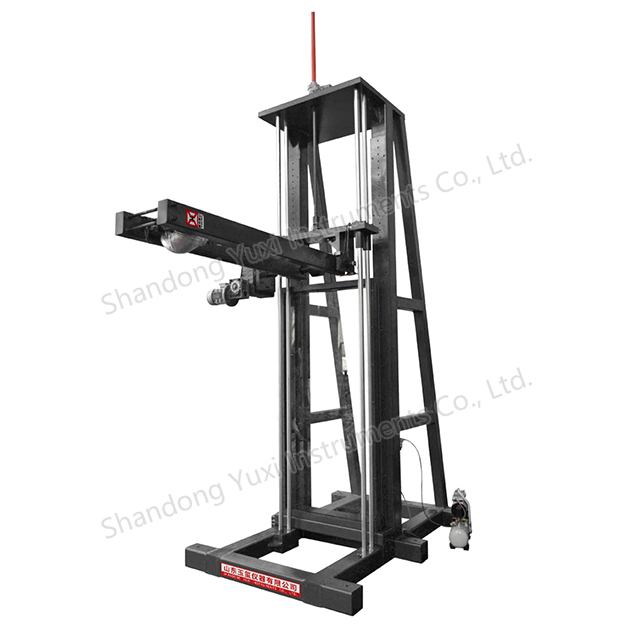

LDPI Lift door pendulum impact testing machine

The door impact testing machine is used for the pendulum impact test of lift landing doors,
Availability:
Quantity:
  • LDPI

  • YUXI

Description

The lift door pendulum impact testing machine is mainly used for the pendulum impact test of lift landing doors, car doors, glass doors and escalator glass. This product is mainly suitable for lift landing doors, car doors, glass doors and escalator glass manufacturers and testing institutions.


Functions

· Frame type host structure

· Swing rod lifting device

· Pendulum

· Pendulum release device

· Protection device

· Motor swing and pneumatic release


Parameters

Pendulum:Hard pendulum: 10 kg, soft pendulum: 45 kg

Length of swing rope:1500 mm one set, 1524 mm one set

Pendulum impact height:0 ~ 1500 mm

pendulum lifting height:0 ~ 1500 mm

display mode:liquid crystal display

Test object:lift landing door, car door, glass door and escalator glass.

Dimension (approximately):2200×1200×5200 mm

Control method:PLC

Power:AC 380 V, less than 3 kW
