OGTB-1
YUXI
Description

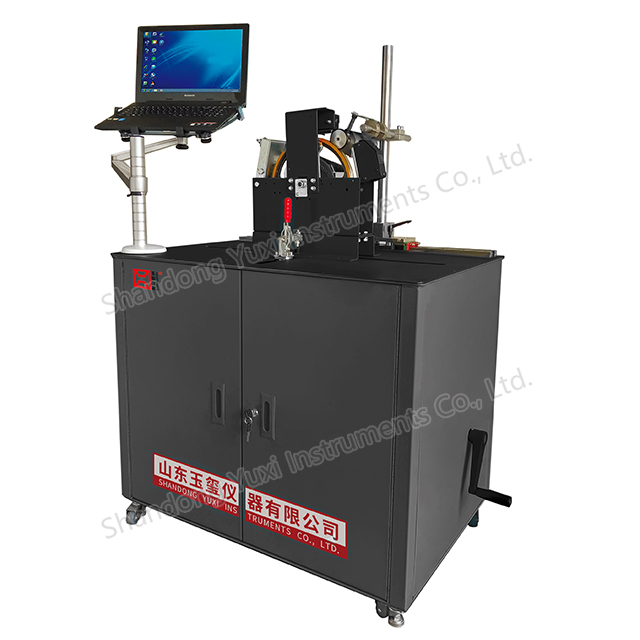

Lift overspeed governor testing bench is used for testing the linear velocity of governor tension pulley and response time of governor tripping.
It is suitable for inspection of lift governor by testing companies, lift installation companies, as well as online testing of lift and overspeed governor manufacturers.
Functions
Speed and force measurement(Two in one). Measuring response time of electric safety device and safety gear, the pulling force of the overspeed governor, etc.
This testing bench can test overspeed governor of different diameters by adjusting the motor bracket assembly and slide rails.
Special laptop holder: adjustable in various angular positions, convenient and flexible.
Data export function: test data can be exported for saving and printing, etc.
Drive motor speed can be adjusted automatically
The drive motor can change the direction of rotation
Parameters
Speed range: 0.5-9.99m/s
Speed resolution:0.001m/s
Speed accuracy: 1%
Maximum speed of drive motor: 5000rpm
Maximum pulling force: 5000N
Pulling force resolution:1N
Reduction ration: 1:30
Operation temperature: -10-50℃
Power: AC 220V
